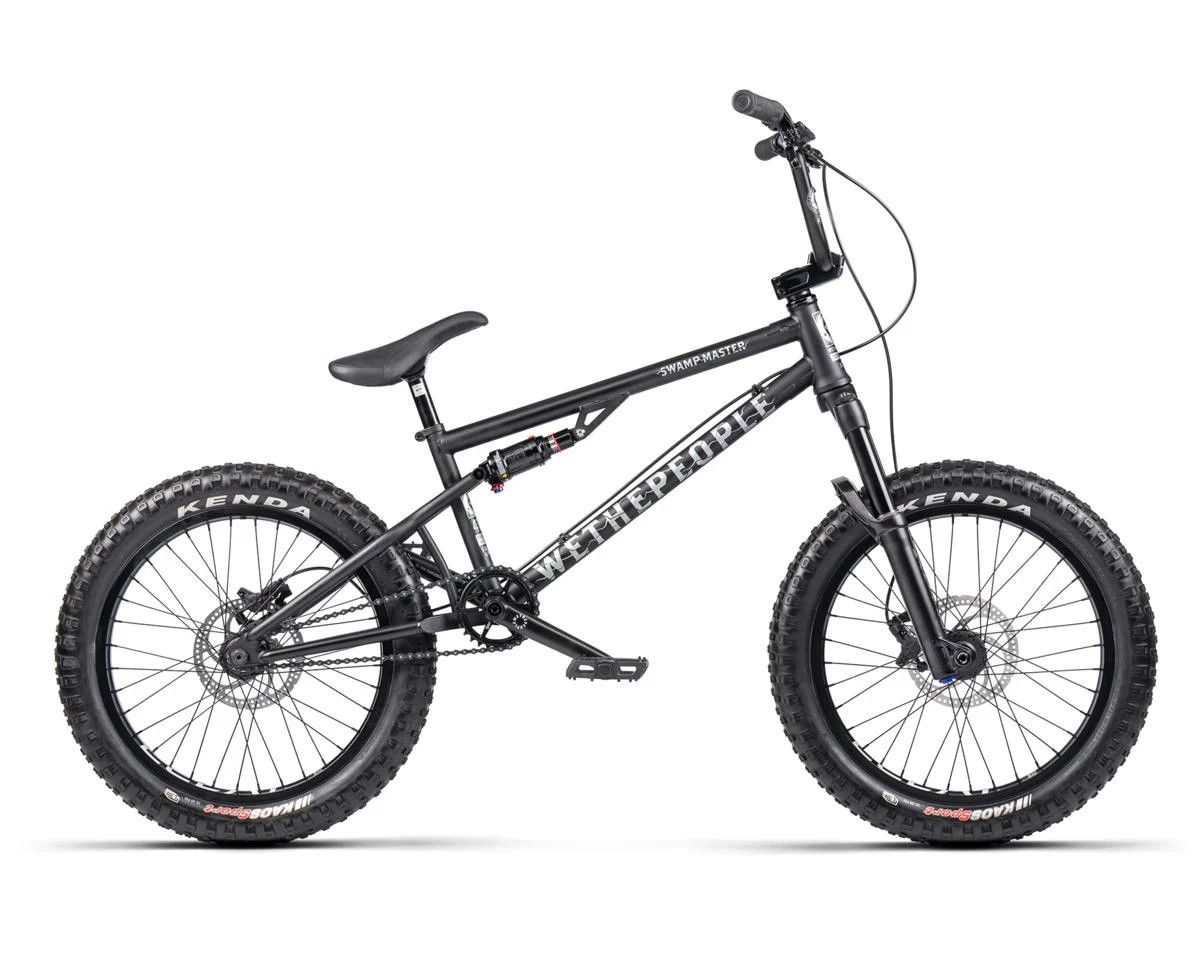

WTP SWAMPMASTER MATTE BLACK 21.5

Specifications:

• Frame: WTP Swamp master Frame, 4130 full chromoly, integrated chain tensioners
• Shock: Rockshox Monarch RL Shock (152 x 31) ***May come with Suntour Raidon Lo, depending on availability***
• Fork: Manitou Machete J-Unit Expert Fork, custom tuned (100mm travel)
• Headset: WTP Compact integrated headset, sealed bearings
• Stem: Éclat Burns Topload Stem, CNC alloy (51mm reach)
• Bars: WTP Swamp Master Bar, post liquid heat treated 4130 chromoly (8" rise) (29.15" width) (11° back sweep, 2.5° up sweep)
• Grips: Salt EX Grips (154mm) (flangeless)
• Cranks: WTP Logic Tubular 3-piece Cranks, chromoly (175mm length) (22mm, 48 spline spindle)
• Bottom Bracket: WTP Compact BB, sealed bearings (22mm)
• Pedals: WTP Logic Pedals, nylon/fiberglass
• Sprocket: WTP Patrol Sprocket, CNC, 6061-T6 alloy (28T)
• Chain: Éclat Diesel Chain
• Front Hub: Éclat Exile Disc Front Hub (Boost 120mm) (15mm Thru Axle)
• Rear Hub: Éclat Exile Disc Cassette Hub (3/8" female bolts)
• Driver: 1-piece cassette, 120 points of engagement (9T)
• Front Rim: Éclat Bondi Rim, flash welded, double wall (38mm wide) (36H)
• Rear Rim: Éclat Bondi Rim, flash welded, double wall (38mm wide) (36H)
• Front Tire: Kenda Kaos Tire (20 x 2.6")
• Rear Tire: Kenda Kaos Tire (20 x 2.6")
• Seat: Éclat Bios Pivotal Seat, slim padded
• Seat Post: WTP Team Pivotal Post, 6061-T6 alloy (200mm)
• Seat Clamp: Integrated
• Brake Lever: Bengal Ares 3 Disc Brake Levers
• Brakes: Bengal Ares 3 Hydraulic Disc Brakes
• Rotors: 160mm rotors
• Color: Matte Black
• Weight: 31.97 lbs

Geometry:

• Toptube Length: 21.5"
• Chainstay Length: 14.1" - 14.8"
• Headtube Angle: 71°
• Seattube Angle: 70°
• Bottom Bracket Height: 12.15"
• Standover: 9.5"
